Hawke AIRMAX 30 WA SF 4-16X50 AMX IR RETICLE

€48500

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

1 op voorraad





    Gratis verzending vanaf €100 in België

  1-3 dagen levertijd in België

  Fysieke winkel - afhaling mogelijk

    Professioneel en oprecht advies (klik hier)

    For shipping outside the Benelux, contact us
Toevoegen aan verlanglijst
Artikelnummer: HAW-HALU27A Categorie: Product ID: 8968

Beschrijving

  • Capped Target Turrets
  • 30mm Mono-Tube Chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 16 Layer Fully Multi-Coated Lenses
  • High Torque Zoom Ring
  • Fast Focus Eyebell
  • AMX Reticle Designed For Airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.

AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

  • MORE RETICLE INFORMATION
Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Riflescope Alignment Booklet
  • Lens Cloth
  • 4″ Sunshade
  • Metal Flip-Up Lens Covers
  • Flip-Up Removal Tool
  • 4″ Sidewheel
  • Hex Key
  • CR2032 Battery

DOWNLOADS

Instruction Manual

PDF 0.5MB

Reticle Booklet

PDF 0.5MB
Objective Lens: 50mm
Reticle: AMX IR
Parallax: Side Focus
Magnification: 4 – 16x
Optical System: System H2
Focal Plane: SFP (Second Focal Plane)
Scope Tube: 30mm
Illumination: 6 Levels with Off Positions In-between – Red
Field of View: 30.7 – 7.7ft @100yds / 10.2 – 2.6m @100m
Field of View: 5.8 – 1.5°
Eye Relief: 4in / 102mm
PX/Focus (Error free from): 10yds – ∞ / 9m – ∞
Exit Pupil: 0.49 – 0.12″ / 12.5 – 3.1mm
Turret Type: Target
Turret Caps: YES
Click Value: 1⁄ 10MRAD
Elevation Turret Clicks (max): 27 MRAD
Windage Turret Clicks (max): 27 MRAD
Ocular Type: Fast Focus
Power Selector: Rubber Coated Posi-Grip
Lens Coating: Fully Multi-Coated – 16 Layers
Length: 13.7″ / 348mm
Weight: 26.8oz / 760g

COMPATIBLE WITH

61 009

Flip-Up Cover (Metal)Included with

Airmax 30 WA SF 4-16×50 AMX IR

50mm
Objective
Flip-Up Cover - Objective (50mm)
61 052

Flip-Up Cover (Metal)Included with

Airmax 30 WA SF 4-16×50 AMX IR

Size 3
Ocular
Flip-Up Cover - Ocular Size 3
61 109
Pro Flip-Up Cover (Metal)
50mm
Objective
Professional Flip-Up Cover - Objective (50mm)

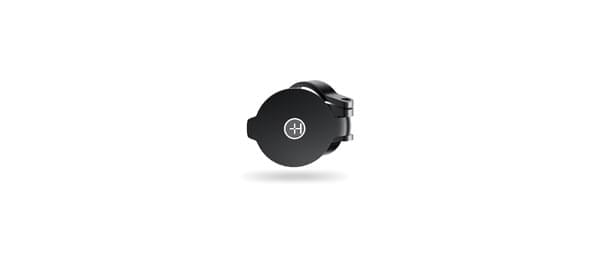

61 150
Pro Flip-Up Cover (Metal)
46mm
Ocular
Professional Flip-Up Cover - Ocular (46mm)
62 009

Sun ShadeIncluded with

Airmax 30 WA SF 4-16×50 AMX IR

50mm
Sunshade - Objective (50mm)
62 109
Sun Shade : Honeycomb
50mm
Honeycomb Sunshade - Objective (50mm)
97 300

Replacement Battery Cap (Hawke Logo)Included with

Airmax 30 WA SF 4-16×50 AMX IR

Riflescopes
Replacement Riflescope Battery Cap - Hawke Logo

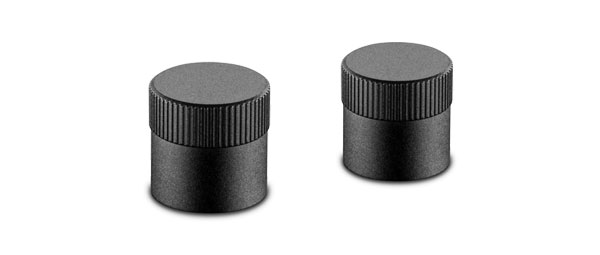

97 313

Replacement Turret CapsIncluded with

Airmax 30 WA SF 4-16×50 AMX IR

Type 04
Airmax 30 WA SF/FFP/Touch
Riflescope Type 04 Turret Caps - Airmax 30 WA SF & FFP

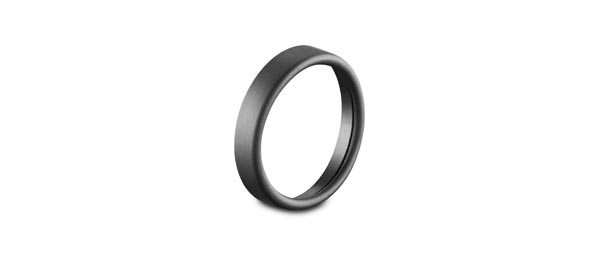

97 373

Replacement Rubber EyecupIncluded with

Airmax 30 WA SF 4-16×50 AMX IR

–
Vantage 30 FFP, Airmax 30 WA SF& FFP
Replacement Riflescope Ocular Rubber Eyecup Vantage 30 FFP, Airmax 30 WA SF & FFP

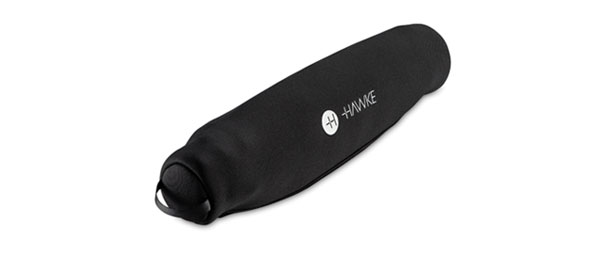

99 213
Neoprene Scope Cover
Black
14″ / 35.5cm
Neoprene Scope Cover 14”
